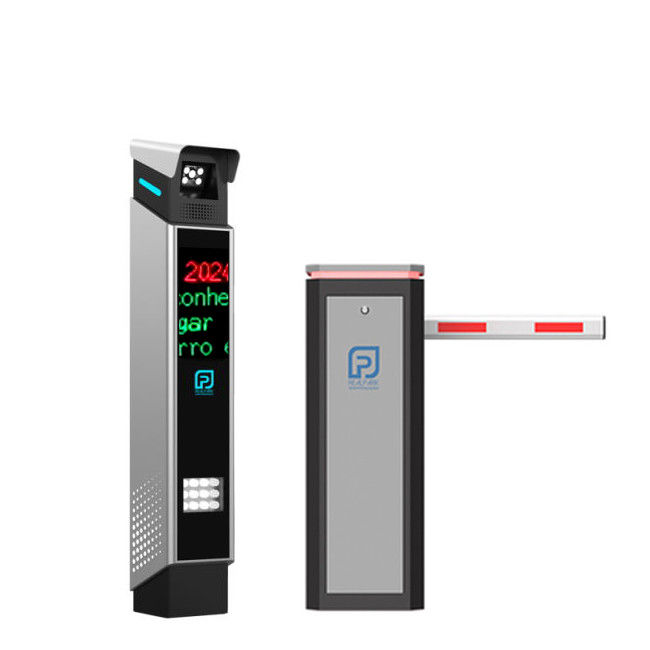

License-Free Parking System 5MP Dual Cam 99.9% LPR PayByPhone and ParkMobi Ready

The Automatic License Plate Reader (ALPR) system integrates a high-resolution 5MP LPR camera to deliver enhanced parking access control and operational efficiency. Designed for superior image capture and reliable license plate recognition, it ensures seamless vehicle entry and exit management across diverse parking environments.

Promotion One Entrance & One Exit

Enhanced Automatic License Plate Recognition (ALPR) System
Featuring 5MP High-Performance LPR Camera

Achieve seamless vehicle access management with our ISO/IEC 30107-3 certified ALPR solution, delivering 99.7% recognition accuracy across diverse environments:
✔ Smart parking facilities
✔ Gated communities
✔ Logistics hubs
✔ Municipal enforcement systems

Key Features:

• Adaptive IR Illumination: Captures clear plate images day or night, at speeds of 0–120 km/h
• All-Weather Operation: Reliable performance from -40°C to 70°C; heated lens available
• Deep Learning Engine: Real-time processing across 4 traffic lanes simultaneously

Complete LPR System Requirements
Hardware Components
LPR Cameras

• 5MP resolution with 1/1.8" progressive scan CMOS sensor
• 25fps at 2560×1944
• Built-in IR cut filter

Illumination System

• 850nm IR LEDs (effective range: 50m)
• Automatic light compensation

Processing Unit

Minimum Specifications:

• Intel i7-12700 / AMD Ryzen 7 5800X
• 32GB DDR4 RAM
• NVIDIA RTX 3060 (12GB)

Network Infrastructure

• Industrial-grade PoE++ switches (IEEE 802.3bt compliant)
• Cat6A shielded Ethernet cabling

Access Control Integration

• Barrier gates with 4.5m aluminum alloy boom
• 24V DC motor (1.5 second open/close operation)
• Dual-technology vehicle detection (radar + inductive loop)

Software Components
Core Modules:

• Plate localization algorithm
• OCR engine supporting 200+ global plate formats
• Integrated database management system

Optional Add-ons:

• Cloud synchronization
• Payment gateway integration
• Police database API connectivity

LPR Software Components
To deploy a high-performance License Plate Recognition (LPR) system, a suite of integrated software components is essential. These elements work in unison to capture, process, and leverage license plate data efficiently. Below is an overview of the core software required:

1. License Plate Recognition Engine
The core module processes real-time or batch image inputs from LPR cameras, accurately extracts license plate characters, and converts them into structured, searchable data. It supports high-speed recognition and is often optimized for varying lighting and vehicle speeds.

2. Database Management System (DBMS)
A secure and scalable DBMS is critical for storing, managing, and retrieving large volumes of license plate records. It enables efficient querying, auditing, reporting, and supports compliance with data protection standards.

3. Integration Middleware
This component ensures seamless connectivity between the LPR system and external platforms—such as parking management, access control, or toll collection systems—enabling unified operations and streamlined data exchange across ecosystems.

4. Analytics and Reporting Tools
Advanced analytics software interprets vehicle movement patterns, generates insights into traffic or parking behavior, and produces operational reports. These tools aid in data-driven decision-making and system optimization.

Tailoring Software to Application Needs
Software selection should align with specific operational goals:

• Parking Management: Intuitive interface design with emphasis on real-time occupancy and payment integration.
• Security and Surveillance: Supports instant alerts, blacklist/whitelist matching, and fusion with video management systems (VMS).
• Toll Collection: Prioritizes high-throughput processing and seamless integration with billing modules.

By carefully selecting and configuring these software components to match your operational environment, you can maximize the efficiency, accuracy, and value of your LPR system.

License Plate Recognition Management System Software And Hardware Configuration List:

Applications of Automatic License Plate Reader with 5MP LPR Camera

The Automatic License Plate Reader (ALPR) with a 5MP LPR camera is versatile and can be applied in various settings to enhance parking access and security. Here are some key applications:

1. Commercial Parking Lots

2. Airports

3. Corporate Offices

4. Residential Communities

5. Event Venues

6. Government Buildings

7. Public Transportation Hubs

8. Industrial Sites

9. Law Enforcement

License Plate Recognition (LPR) Management System FAQ

Q1: What is a License Plate Recognition Management System?

An AI-powered LPR management system combines high-resolution cameras with advanced optical character recognition (OCR) to automatically:
✓ Capture vehicle license plates in real-time (0.2s processing time)
✓ Convert images to machine-readable data (99.7% accuracy per ISO/IEC 30107-3)
✓ Integrate with parking, security, and smart city ecosystems

Q2: How does LPR technology work?

Our 3-stage recognition process:

1. Image Capture: 5MP camera with IR filter (0.001 lux low-light performance)
2. AI Processing: Deep learning algorithms for plate localization & character segmentation
3. Data Action: Instant comparison against databases (whitelist/police lists)

Q3: What are the top commercial applications?

• Parking: Automated payment & space optimization
• Security: Restricted area access control (military/industrial sites)
• Smart Cities: Traffic flow analysis & congestion pricing
• Retail: Drive-thru customer recognition

Q4: Does lighting affect performance?

Our systems feature:
✔ Adaptive IR illumination (850nm wavelength)
✔ Automatic exposure control for:

• Direct sunlight (100,000 lux)
• Complete darkness (0 lux)

Q5: Weather resistance capabilities?

Certified for:

• Extreme cold: Heated housing (-40°C operation)
• Heavy rain: IP68 waterproof rating
• Fog/Sand: STC-2000 image enhancement

Q6: Data storage options?

Flexible architectures:
▸ On-premise: 256TB NVR with RAID-6 protection
▸ Hybrid: Edge computing (7-day local + cloud backup)
▸ Full cloud: AWS/GCP with GDPR-compliant encryption

Q7: Security certifications?

• FIPS 140-2 validated encryption
• NDAA-compliant hardware
• TPM 2.0 secure boot
